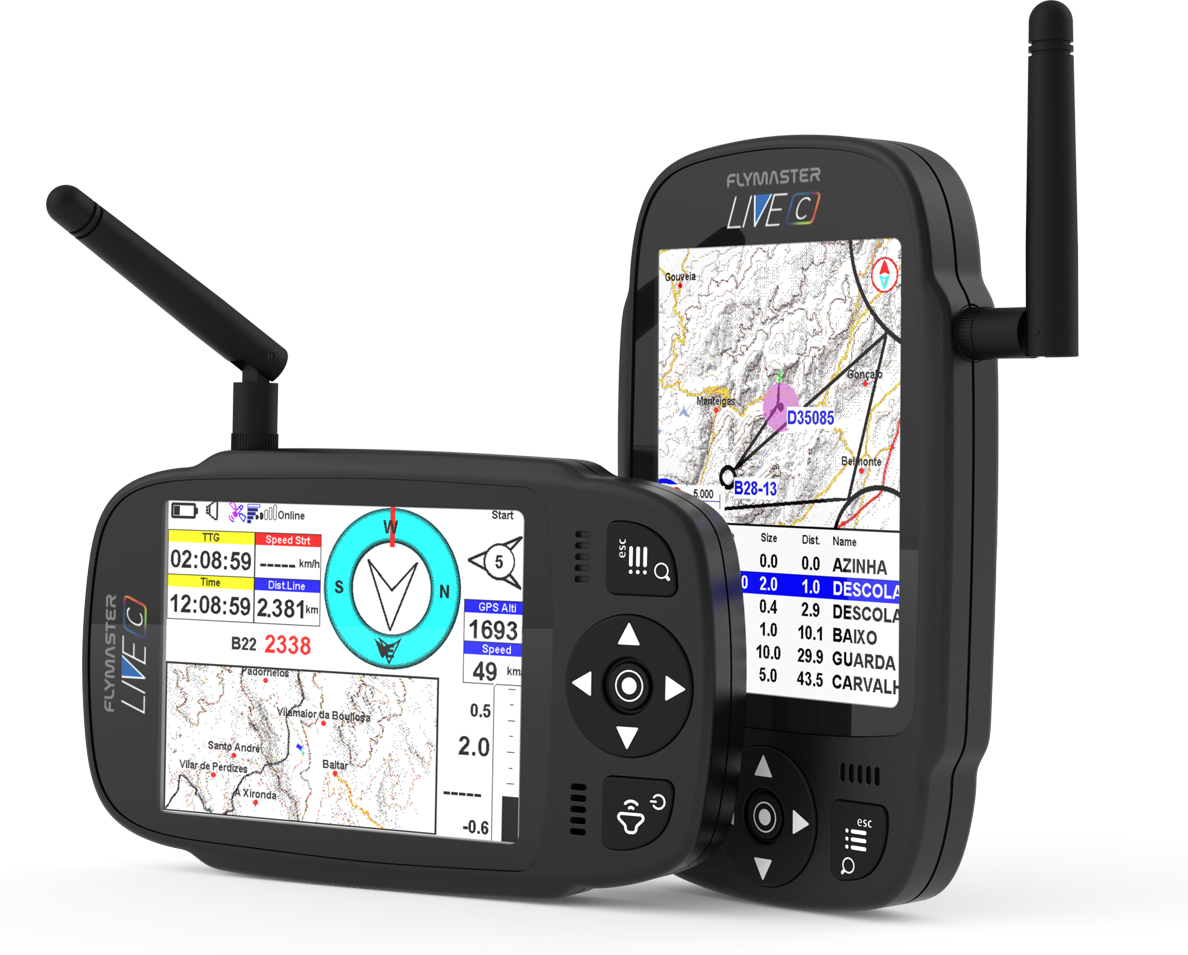

Live C - C from color. C from competition.

Live C - C from color. C from competition.

Unleash the power of the LIVE C, where the might and alluring features of the LIVE DS come together in a sleek and compact single-display package. Experience the ultimate fusion of performance, portability, and the unrivaled prowess of LiveTracking technology, proven to be the world's best. Redefine your navigation experience with unparalleled simplicity, versatility, and the assurance of real-time tracking like never before.

Main Hardware Characteristics

Display Type 4.41inch reflective colour 640x480px
Battery Capacity (Lithium-Ion) 6000 mAh
Autonomy Usually more than 24 hours (environment conditions may alter this value)
Size 152x90x18 mm
Weight 220 g
GPS 72 channel U-blox BeiDou, Galileo, GLONASS, GPS / QZSS
Native USB Connection USB Type-C Mass Storage Access
Battery Charging From wall adapter or standard usb port
GSM Global Multi-band LTE-M
Bluetooth Bluetooth 5 low energy module
Flarm Flarm ready (optional Flarm Aware RX + TX mode)
Micro SD Supports SDcards up to 256 GB
6 Axis accelerometer and magnetometer Allows 6-degrees of freedom Tilt-compensated Compass)
Firmware update by USB (upgrades are free)

Interface Features

User definable pages 8 page sets
Configurable graphical elements 15
Configurable data field elements 85
Page Trigger Events • Airspace warning
• Entering thermal
• Transition (leaving thermal)
• Arriving at turn point
• Start opened
• Power up
Interface language English
Configurable voice alerts • Airspace
• Turn point complete
• Start opened
• Goal Possible
• Distances
• Countdown time

Variometer/Altimeter Features

  • Buzzer/near thermal sound
  • Ultra sensitive Variometer with 10 readings per second and 10 cm resolution
  • Configurable vario digital filter and integration values
  • Fully configurable Vario Sound
  • Adjustable Sound Levels
  • Automatic mute, keeps vario silent until takeoff
  • Altitude adjustment using QNH
  • Automatic altitude adjustment from GPS
  • 2 independent altimeters

Memory Features

  • 3D flight logger IGC format

3D Airspace

  • The map offers an intuitive visualization of restricted areas
  • Adjustable voice warning of vertical distance to a restricted area
  • Adjustable voice warning of horizontal distance to a restricted area
  • Display of shortest vertical, and horizontal distance to restricted area
  • Restricted area voice alarms
  • Critical Airspace page
  • Airspaces browser
  • Worldwide Airspace database

Maps

  • Detailed colored maps with topographic data
  • With configurable layers

Cross Country Features

  • Exclusive Thermal Ball indicator
  • Several specific data fields
  • Distance to last thermal indexed with altitude
  • Goto waypoint
  • Multiple waypoint route
  • Wind Speed and Direction
  • Automatic altitude gain profiler
  • Nearby Landings

Competition Features

  • Route Optimization
  • Speed to Start
  • Arriving altitude at next waypoint and goal
  • Several Glide Ratios
  • Easy task definition
  • Task Navigation
  • Task Map

Live Tracking

  • Flight data can be efficiently uploaded to various repositories
  • Automatic almost real time flight data sending
  • On demand sending of predefined messages
  • Effortlessly receive data from a remote server
  • Optimized LTE-M/GPRS data usage

Interfacing

Compatible with MacOS (10.13 and higher), Windows (7/8/10)

€990,00 EUR
€990,00 EUR
Sale Sold out
Taxes included.
